Graphtec CE7000 Series
$7,200.00 – $14,300.00
- Digital Servo Motor
- Maximum Cutting Area: 375mm x 50m (CE7000-40) | 603mm x 50m (CE7000-60) | 1270mm x 50m (CE7000-130)
- Range of Guarantee Precision: 55mm x 2m (CE7000-40) | 583mm x 5m (CE7000-60) | 1250mm x 5m (CE7000-130)
- Maximum Mountable Media width: 484mm (CE7000-40) | 712mm (CE7000-60) | 1372mm (CE7000-130)
- Minimum Mountable Media width: 50mm
- Maximum Cutting Speed: 600mm/s (CE7000-40) | 900mm/s (CE7000-60) | 1000mm/s (CE7000-130)
- Maximum Media Thickness: 0.25mm
- Maximum Cutting Force: 4.41N (450 gf)
- Minimum character size: 5mm
- Interface: USB 2.0 & 100MB Ethernet
- Buffer: 2MB, Large LCD Display menu
- Supports perforation cutting (die cut and half cut)
- Automatic paneling features
- Come with Standard Accessories and 1 unit of blade
- Direct output from Illustrator and CorelDraw
- Print and Cut Features, Windows and Mac Compatible
- Auto mark reading (ARMS 5.0)
- 1 year limited warranty (exclude cutting stripe and blade)
- With Stand (only CE7000-130 model)
Overview
The New CE7000 Series boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations. The NEW CE7000 Series comes complete with our full complement of Graphtec Software along with our NEWLY ADDED Ethernet Connectivity. Software includes Cutting Master 4 plug-in for Adobe & Corel Users and our popular Graphtec Pro Studio software for design & cut graphics. The CE7000 series works with both PC and MAC platforms, or use the handy new USB Thumb Drive Port if needed.
Features
Enchanced Performance
Max. cutting force 4.41N (450gf) and Max. cutting speed 1000mm/s
Cutting performance that guaranties accurate 5m length cutting

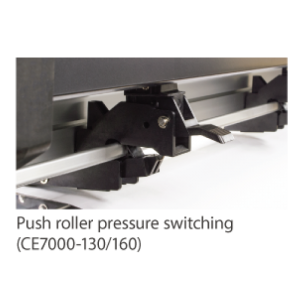

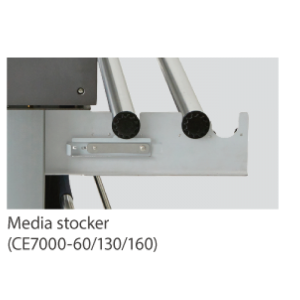

The media stocker helps stabilize the feeding of media. By adjusting the pressure of the middle push roller to the media in three levels, it prevent media floating.

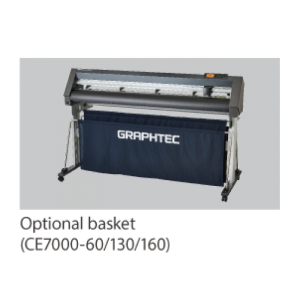

In addition, by using an optional special basket, stability in long cuts can be achieved.
 |
 |
 |
Data output via USB flash memory without PC
When cutting data designed with Cutting Master 4 or Graphtec Pro Studio / Plus are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
* The USB memory format only supports FAT32.
*Please note that NTFS and exFAT are not supported.

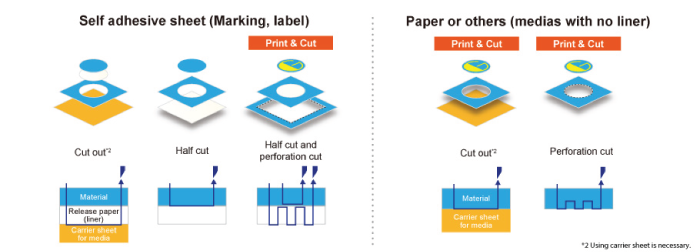

Perforation cutting ability

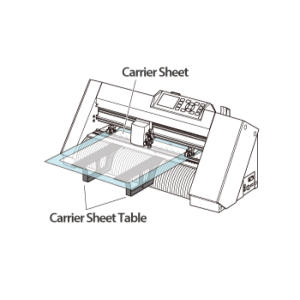

Carrier Sheet Table
| It is an optional item that can be attached to the front and back of the cutting plotter to support a carrier sheet. * Available with CE7000-40 / -60. |
 |

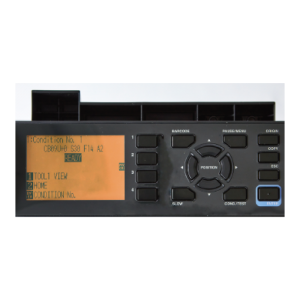

User-friendly control panel
| It is an optional item that can be attached to the front and back of the cutting plotter to support a carrier sheet. * Available with CE7000-40 / -60. |
 |
Improved ARMS for high precision cutting (ARMS 8.0)
The Advanced Registration Mark Sensing system delivers precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Countless efficiency boosting features improve productivity for Print & Cut applications such as stickers and decals.

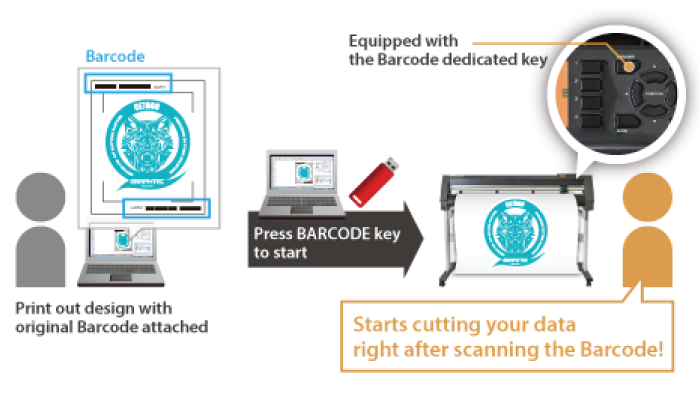

Data Link Function
(Barcode Data Management/Continuous Cutting)
By reading the Graphtec original Barcode, CE7000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
* The USB flash memory format only supports FAT32.
*Please note that NTFS and exFAT are not supported.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | CE7000-60, CE7000-130 |
