Sefa Rotex Air Heat Press
- Optimal heat & pressure distribution
- Robust frame
- Complete lateral clearance of the plate.
- Pneumatic closing & opening.
- Automatic rotation at the end of the cycle (PRO).
- Suitable for laser transfer applications & pretreatment.
- Ideal for medium production.
- Manufactured in France.
- 2-year warranty on the machine.
- 10-year warranty on the heating element.
- Compressor or air network compulsory needed.
The pneumatic ROTEX AIR range is perfect for medium-volume of flex and screen printing transfer applications, sublimation on textiles and rigid substrates, DTG and laser printing, all with outstanding user comfort.

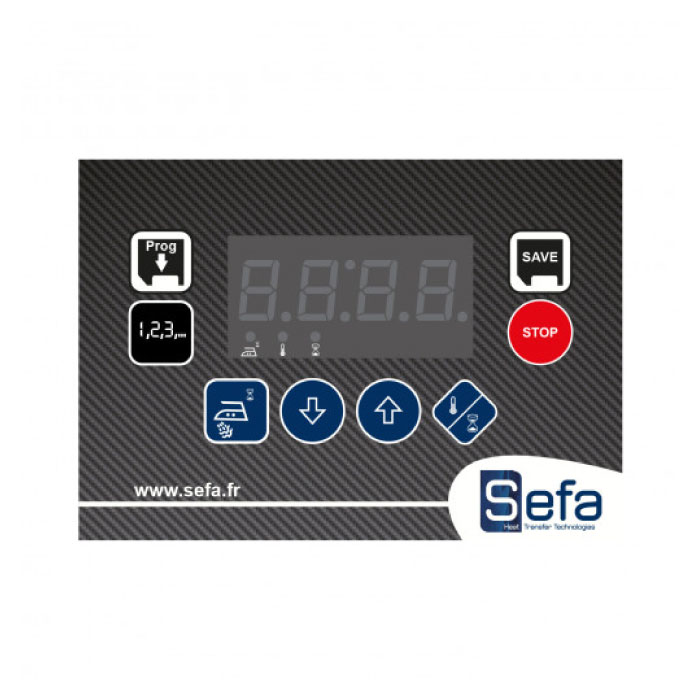

User friendly touch screen
Adaptative regulation parameters depending on the job: flex, sublimation on
textile, sublimation on rigid substrates, DTG…
Save up to 5 programs PER recipe, Sleep mode, Eco mode,
Double timer (main + pre-heat), Cycle counters.
From 0 to 600 sec (precision +/- 1%).
From 15 to 220°C (precision +/- 1%).
Heating time to reach 180°C : 10 mn.
| DESCRIPTION | ROTEX AIR LITE |
ROTEX AIR PRO V2 |
ROTEX AIR PRO MULTI V2 |
| Weight | 81kg | 82kg | 86kg |
| Pressure | 400 gr/cm² | 400 gr/cm² | 400 gr/cm² |
| Max Temperature | 220°C | 220°C | 220°C |
| Power Supply | 240V single phase
2500W |
240V single phase
3200W |
240V single phase
3200W |
| Amperage | 11A | 14A | 14A |
| Plate | 40x50cm | 40x50cm | 40x50cm |
| Dimensions | 621x847x572 mm | 621x847x579 mm | 621x847x597 mm |
| Packing | CAI-011 | CAI-011 | CAI-011 |
| Features | Automatic Opening
Manual Swing |
Automatic Opening
Automatic Swing |
Automatic Opening
Automatic Swing Membrane |
Additional information
| MODEL | AIR LITE, AIR PRO, AIR PRO MULTI |
|---|
