Description
Product Details
It’s no wonder why SummaCut is one of the most popular series of vinyl cutters ever built. By combining world renowned craftsmanship with real-world affordability, Summa managed to create a top-of-the-line cutter series that tops all other competitors.
The SummaCut range of cutter has been designed to produce computer-generated
graphic designs on cut sheet or roll vinyl media. By replacing the knife with a fibre tip
pen, the cutter can also be used to produce inexpensive previews of new graphic
designs on paper.
Specifications
| CUTTING TYPE | Drag knife with TurboCut and Tangential Emulation Modes | |||
| TOOL COMPATIBILITY | Blade, Pen, Pounce Tool | |||
| CUTTING SPEED | All SummaCut models cut at speeds up to 1131 mm/sec (44 ips) diagonal | |||
| AXIAL SPEED | Up to 2 G | |||
| ALIGNMENT TYPE |
|
|||
| MAXIMUM ACCELERATION | Up to 3 G diagonal | |||
| TRACKING PERFORMANCE | Within ± 0.1 mm (± 0.004 in.) on plots up to 8 m long (40 ft.); on rolls up to 760 mm wide Within ± 0.1 mm (± 0.004 in.) on plots up to 4m long; on rolls over 760 mm wide |
|||
| CUTTING FORCE | 0-400 grams of down-force, in 5 gram increments | |||
| REPLOT MEMORY | 4 MB (buffer size: 16 MB) | |||
| DISPLAY LANGUAGES | English; French; German; Dutch; Italian; Spanish; Polish; Lithuanian | |||
| CONNECTIVITY | USB, Serial RS232, Ethernet (only on SummaCut D120, D140 – not FX – & D160) | |||
| POWER REQUIREMENTS | 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum | |||
| OPERATING TEMPERATURE | 15˚ to 35˚C (59˚ to 95˚F) | |||
| STANDARD ACCESSORIES | WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades. | |||
| OPTIONAL ACCESSORIES | Stand or Stand and Basket for SummaCut D60 | |||
Features
- Accepts media up to 67 centimetres wide
- Cuts up to 63 centimetres wide

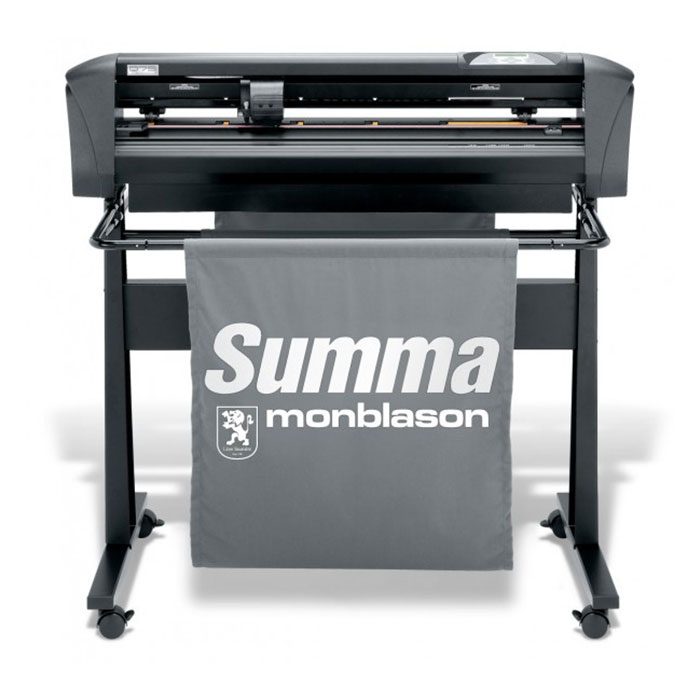

- Optional stand or deluxe stand available
- OptiCut™ eliminates flaws due to blade-wear

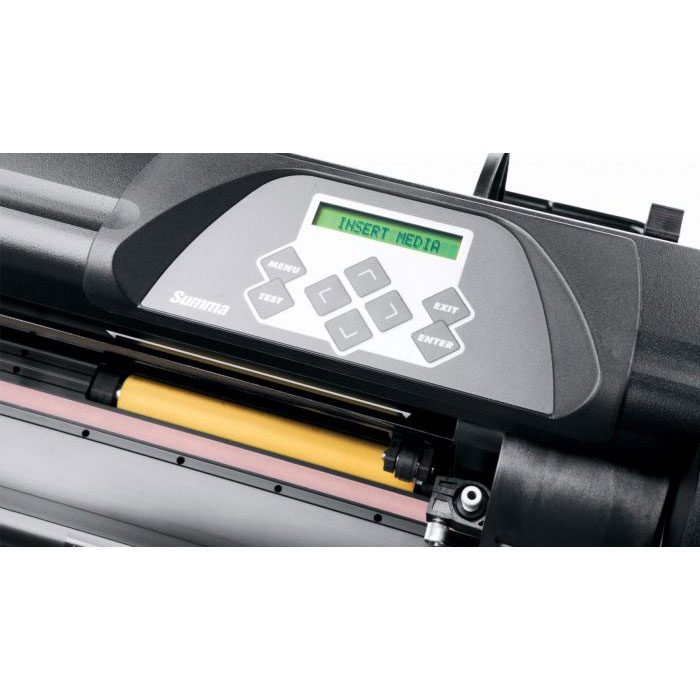

Intuitive control panel
SummaCut plotters feature a large, easy-to-use control panel that allows you to quickly and easily change setting such as speed, pressure and plot mode.
Save your favourite settings in 4 user-defined configurations for even faster switching between cutter settings.
Legendary Summa Tracking
Our exclusive MicroSprocket™ drive drum conditions the media as it advances to assure super-accurate tracking. Summa cutters track so well, they’ve literally become an industry legend.
Oversized cutting capabilities
The SummaCut-R now comes with the same oversized cutting capabilities as our S Class Flagship cutters.
OPOS X optical alignment system
The world’s most advanced optical sensor OPOS X is capable of reading registration marks on an even wider range of output.
